FEC Retail Smart
10.4” Fully Integrated
Compact POS Terminal
Retail Smart is a fan-less, compact touch POS terminal housed in aluminum and plastic for both high reliability and mobility. Retail Smart incorporates state-of-the- art design concept to integrate various peripherals into one seamless look.
Feature
Integrated Components and Peripherals
With a built in printer, customers can choose from integrated peripherals such as, MSR, IC-card reader and customer display.
Compact and Heavy Duty
Retail Smart is housed in both aluminum and plastic to be both rugged yet lightweight enough to carry and set up quickly.
Easy Accessed Key Components
Key components such as storage HDD, modularized CPU Box, printer module, display and customer display are designed for easy access and simple maintenance.
Colorful
Can be customized into various colors. Standard colors include white & black as well as black.
Specifications
| Model | MP-2410 | ||
| Processor | Intel® Atom™ N270, 512K L2 Cache, 1.6Ghz, 533Mhz FSB | ||
| System Memory | 1 GB Standard, Maximum 2 GB (1 x 200-pin DDR2) | ||
| Power Supply | 120W (24V / 5A) ; 180W (24V / 7.5A) External Power Adaptor | ||
| Storage Device | 1 x 2.5” SATA HDD (Swappable) | ||
| 2nd Storage Device | 1 x CF II | ||
| Speaker | Internal Speaker 2W x 2 | ||
| Construction | Aluminum Die-casting + Plastic | ||
| Housing Color | Black + White (Standard) / Black | ||
| Touch LCD Display | |||
| Size / Resolution | 10.4” LED LCD 800 x 600 | 10.4” LED LCD 800 x 600 | 10.4” TFT 1024 x 768 |
| Brightness (Backlight Type) | 250 cd/m2 (LED) | 400 cd/m2 (LED) | 350 cd/m2 (LED) |
| Input Interface | TTL | LVDS | LVDS |
| Touch Screen | 5-Wire Resistive Touch | 5-Wire Resistive Touch | 5-Wire Resistive Touch |
| I/O Ports | |||
Serial Port |
3 x Internal: COM5 (Printer), COM3 (LCM), COM6 (Reserved) | ||
| 3 x External: COM1, COM2, COM4 (DB9) | |||
| USB Port | 4 x External (2 Rear, 2 Hidden) | ||
| Cash Drawer Port | 1 x RJ11 (12V / 24V) | ||
| Keyboard / Mouse | 1 x PS/2 | ||
| LAN Port | 1 x RJ45 Giga LAN | ||
| Video Port | 1 x VGA | ||
| Audio Port | 1 x Line-out | ||
| DC Output | 1 x 12V DC Jack 2.5 mm | ||
| OS Supported | |||
| Windows | Windows XP, Windows XPE, POSReady 2009, Windows 7 | ||
| Linux | Per Request | ||

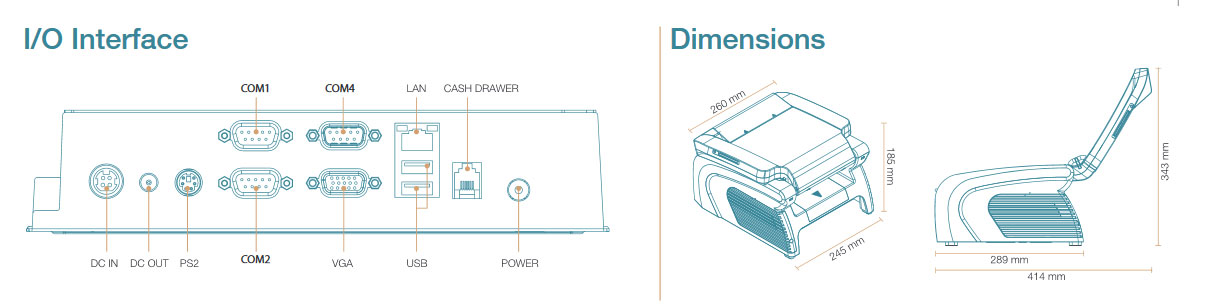

| Physical Dimensions | |||
| Dimensions (WxHxD) | 260 x 289 x 185 mm (Display Folded); 260 x 289 x 343 mm (Display Up) | ||
| Environment | |||
| EMI / Safety | CE, FCC Class A | ||
| Operating Temperature | 0˚C ~ 40˚C (32˚F ~ 104˚F) | ||
| Storage Temperature | -10˚C ~ 55˚C (14˚F ~ 131˚F) | ||
| Relative Humidity | 10% ~ 90% (Non-condensing) | ||
| Built-in Printer | |||
| Printer Method | Thermal Line Printing | ||
| Printing Width | 58 mm / 80 mm /82.5 mm | ||
| Paper Size | Paper Roll: 80 / 82.5 (W) mm x 100 mm Diameter | ||
| Printing Speed | Max 230 mm/s | ||
| Interface | RS232 | ||
| Optional Peripherals | |||
| Magnetic Stripe Card Reader | Integrated MCR Module (Single / Dual / Triple Track Selectable) | ||
| IC Card Reader | Integrated Available | ||
| LCM | Integrated LCM Module (192 x 32 Graphic/ 20 x 2 Characters) | ||
| Wireless Module | Wi-Fi Module |
