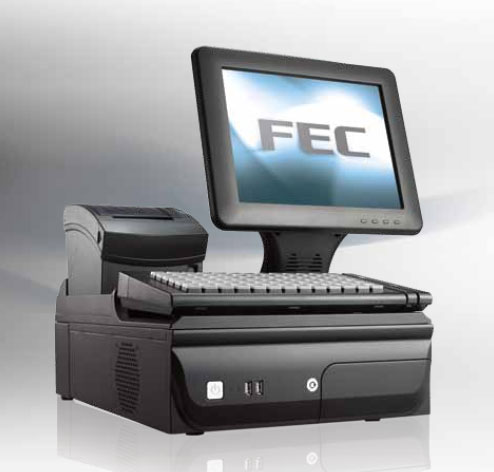

FEC Retail Extreme
12” or 15” Modular Touch
POS Terminal
Retail Extreme is a full function modular touch POS terminal designed with flexible configurations, as well as expandability for retailers of all types and needs to optimize their store operations. Multiple arrangements allow both a unified configuration or a distributed configuration depending on specific needs. In addition, the rich I/O interface gives the terminal high expandability allowing it to grow with the retail environment.
Feature
Flexible Configurations with Modularized Design
Assortment of components such as customer display and printer can be integrated into the POS terminal, provides for flexible configurations and an integrated one piece system look.
High System Compatibility
Delivers high capability for any size businesses and is designed specifically to address key needs and support sophisticated point of sale operating systems.
300W Internal ATX Power Supply with 80 Plus
Powered by 80 Plus power supply, no more adaptor is required for the peripherals.
Adjustable Pivot and Swivel Monitor
Adjustable monitor can be rearranged to meet different clerk operation range requirements
Specifications
| Model | |||
| Processor | Intel® celeron® 440, 512K L2 cache, 2.0Ghz, 800Mhz fSB (HH80557RG041512) Intel® Pentium® E5300, 2M L2 cache, 2.6Ghz, 800Mhz fSB (AT80571PG0642ML) | ||
| System Memory | 1 GB Standard, Maximum 8 GB (4 x 240-pin DDR2) | ||
| Power Supply | 300W Internal ATX Power Supply | ||
| Storage Device | 1 x 2.5” / 3.5” SATA HDD | ||
| 2nd Storage Device | 1 x 2.5” SATA HDD (Swappable) | ||
| Speaker | Internal Speaker 2W x 2 | ||
| construction | Metal chassis with Plastic front Bezel | ||
| Housing color | Black / White | ||
| Touch LCD Display | |||
| Size / Resolution |
|
||
| Brightness (Backlight Type) |
|
||
| Touch Screen | 5-Wire Resistive Touch | ||

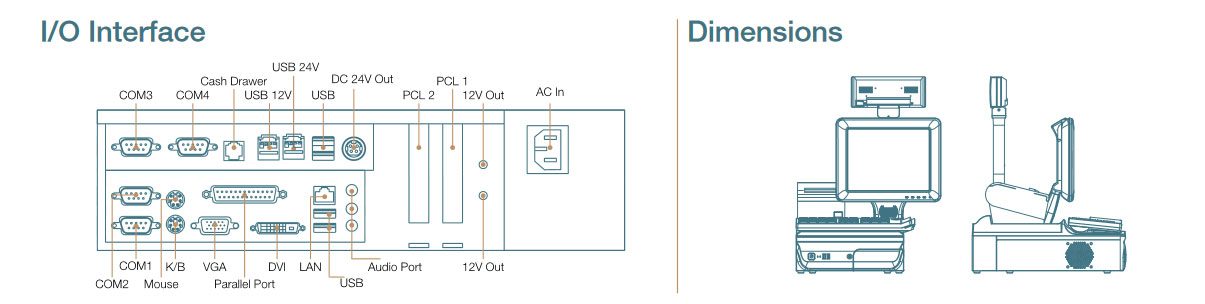

| I/O Ports | |||
| Serial Port | 4 x External: cOM1, cOM2, cOM3, cOM4 (DB9) | ||
| USB Port | 6 x External (2 front, 4 Rear) | ||
| Powered USB Port | 1 x 12V, 1 x 24V | ||
| Printer Port | 1 x Bi-directional Parallel Port | ||
| cash Drawer Port | 1 x RJ11 (12V/24V) | ||
| Keyboard / Mouse | 2 x PS/2 | ||
| LAN Port | 1 x RJ45 Giga LAN | ||
| Video Port | 1 x VGA, 1 x DVI | ||
| Audio Port | 1 x Line-out, 1 x Mic-in, 1 x Speaker | ||
| Dc Output | 1 x 24V/2A Mini-Din 3P for Printer | ||
| Expansion Slot | 2 x 32-bit Low Profile PcI | ||
| Dc Output | 2 x 12V Dc Jack for Monitor | ||
| Ac Input | 1 x Ac Input | ||
| OS Supported | |||
| Windows | Windows XP, POSReady 2009, Windows 7, POSReady 7 | ||
| Linux | Per Request | ||
| Physical Dimensions | |||
| Dimensions (WxHxD) | 470 x 521 x 460 mm | ||
| Environment | |||
| EMI / Safety | cE, fcc class A | ||
| Operating Temperature | 0˚c ~ 40˚c (32˚f ~ 104˚f) | ||
| Storage Temperature | -10˚c ~ 55˚c (14˚f ~ 131˚f) | ||
| Relative Humidity | 10% ~ 90% (Non-condensing) | ||
