FEC GlaivePro
12” or 15” Fan-less POS
Terminal with Rich I/O Access
Glaive D is a fan-less, aluminum POS terminal with Intel® Atom™ D525 1.8GHz Dual-Core processor. The optional peripherals supported by Glaive D allow additional expandability to fulfill different business needs.
Feature
Special Black Leather Paint Coating and Piano White Paint Coating
Customers can choose between a black paint coat that emulates a leather texture that or a shiny and smooth piano white paint coat
Durable Aluminum Alloy Housing Construction for Heat Dissipation
Heat generated from operations is dissipated through the aluminum housing to improve dependability
Low Power Consumption
Reduces electricity usage saving on monthly utility bills
Swappable HDD for Easy Maintenance
Quick access to HDD for easy maintenance
Specifications
| Model | RT-662D | RT-665D | |
| Processor | Intel® Atom™ D525 1m l2 Cache 1.8Ghz | ||
| System memory | 1 GB Standard, maximum 4 GB (1 x 204-pin DDR3) | ||
| Power Supply | 90W (12V / 7.5A) external Power Adaptor | ||
| Storage Device | 1 x 2.5” SATA HDD | 1 x 2.5” SATA HDD (Swappable) | |
| Graphics | Intel® GmA 3150 | ||
| Speaker | Internal Speaker 2W x 2 | ||
| Construction | Aluminum Die-casting | ||
| Housing Color | leather Black / Piano White | ||
| Touch LCD Display | |||
| Size / Resolution | 12” TFT lCD / 800 x 600 | 15” TFT lCD / 1024 x 768 | |
Brightness (Backlight Type) |
330 cd/m2 (leD) | 250 (CCFl) / 450 cd/m2 (leD) |
|
| Touch Screen | 5-Wire Resistive Touch | ||

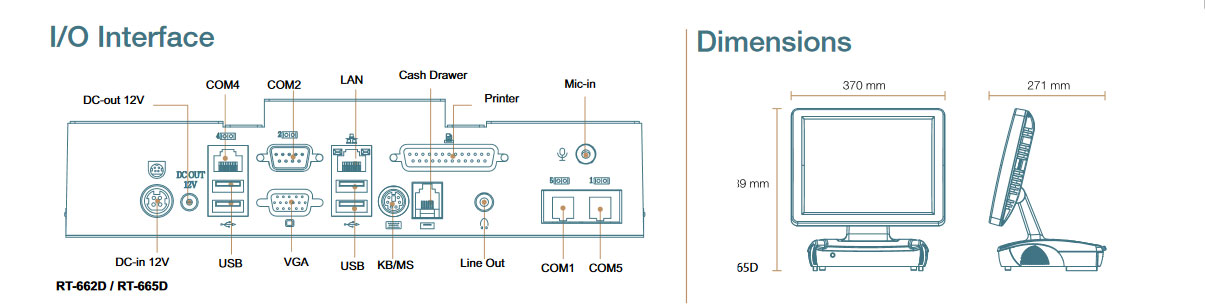

| I/O Ports | |||
| Serial Port | 2 x Internal : COm3 (Touch), COm6 (Reserved) | ||
| 4 x external : COm2 (DB9) COm1, COm4, COm5 (RJ45) | |||
| USB Port | 5 x Internal, 4 x external | ||
| Printer Port | 1 x Bi-directional Parallel port | ||
| Cash Drawer Port | 1 x RJ11 (12V) | ||
| lAn Port | 1 x RJ45 Giga lAn | ||
| PCI Slot | 1 x mini PCI-e (Internal) | ||
| Keyboard / mouse | 1 x PS/2 Port | ||
| Video Port | 1 x VGA | ||
| Audio Port | 1 x line-out, 1 x mic-in | ||
| DC Output | 1 x 12V DC Jack 2.5 mm | ||
