AerPOS
15” Bezel Free POS Terminal with
Intel® Core TM i Processor Supported
FEC is proud to introduce AerPOS, the most beautiful and powerful all-in-one POS terminal in FEC’s line of products. AerPOS features an ultra slim display, sleek chassis and small footprint design that any business owner would be proud to own. Combined with an Intel® Core i3 or i5 processor, AerPOS can support complicated data processing and heavy loading retail environments.
Feature
Supports Intel® vPro Technology
Intel vPro is the combination of processor technologies, hardware enhancements, management features and security technologies that allows remote access to the PC (including monitoring, maintenance, and management) independent of the state of the PC operating system
One-step Quick Replacement of Key Components for Easy Upgrades
Hardware platform can be easily upgraded by swapping out key components such as motherboard and HDD
Ultra Slim Magnetic Stripe Reader Module
MSR reader measures one centimeter in thickness when installed
Specifications
| Model | AP-3615 | AP-3625 | |
| Processor | Intel® Celeron® G540, 2.5Ghz Intel® Core i3-2120, 3.3Ghz Intel® Core i5-2400S, 2.5Ghz | Intel® Celeron® B810, 1.6Ghz Intel® Core i5-2510E, 2.5Ghz (vPro) | |
| System Memory | 2GB Standard, Maximum 8GB (1x204-pin DDR3) | ||
| Power Supply | 150W (12V / 12.5A) External Power Supply | ||
| Storage Device | 1 x 2.5” SATA HDD | ||
| Chipset | Intel® H61 | Intel® QM67 | |
| Speaker | Internal Speaker 2W x 2 | ||
| Construction | Aluminum Die-casting + Plastic + Glass | ||
| Housing Color | Black with Silver Trim or White with Silver Trim | ||
| Touch LCD Display | |||
| Size / Resolution | 15" TFT-LCD/ 1024 X 768 | ||
| Brightness (Backlight Type) & Touch Screen | 250 cd/m2 (CCFL); 5-Wire Resistive Touch | ||
| 2 (LED) with Tempered Glass; Projected Capacitive Touch | |||

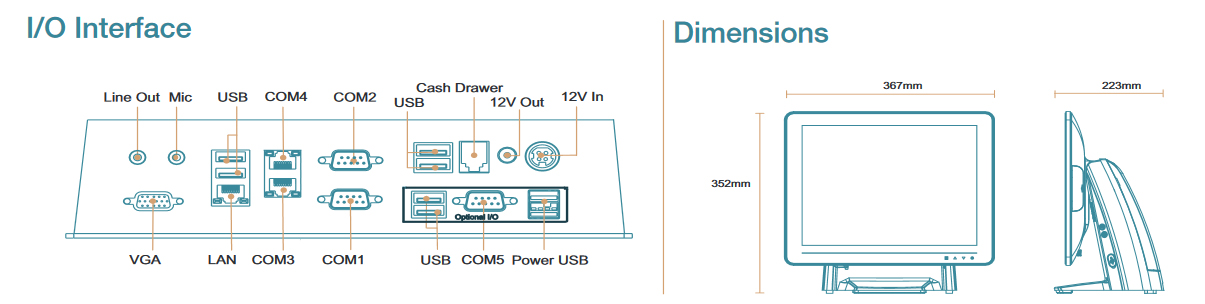

| I/O Ports | |||
| Serial Port | 4 x External: COM1, COM2 (DB9), COM3, COM4 (RJ-45) | ||
| USB Port | 5 x External (4 Rear + 1 Side) | ||
| Cash Drawer Port | 1 x RJ11 (12V) | ||
| LAN Port | 1 x RJ45 Giga LAN | ||
| Audio Port | 1 x Line Out, 1 x Mic In | ||
| VGA Port | 1 x VGA | ||
| DC Output | 1 x 12V DC Jack 2.5 mm | ||
| Optional I/O Board | |||
| Type A | Serial Port: COM5 (DB9); 12V Powered USB Port x 1; USB x 2 | ||
| OS Supported | |||
| Windows | Windows XP, POSReady 2009, Windows 7, POSReady 7 | ||
| Linux | Per Request | ||
| Physical Dimensions | |||
| Dimensions (W x H x D) | 367 x 352 x 223 mm | ||
| Environment | |||
| EMI / Safety | CE, FCC Class A | ||
| Operating Temperature | 0˚C ~ 40˚C (32˚F ~ 104˚F) | ||
| Storage Temperature | -10˚C ~ 55˚C (14˚F ~ 131˚F) | ||
| Relative Humidity | 10% ~ 90% (Non-condensing) | ||
| Optional Peripherals | |||
| Magnetic Stripe Card Reader | Integrated MCR Module (Single / Dual / Triple Track Selectable) | ||
| 2nd Display | Integrated 11.6” or 15” LCD Display (Touch Screen Support for 15” Only) | ||
| Customer Display | Integrated LCM / VFD Customer Display | ||
| Wireless LAN | Integrated 802.11 b/g/n Wireless Module | ||
| Identification Devices | RFID 13.56 MHz / Fingerprint Reader / i-Button | ||
